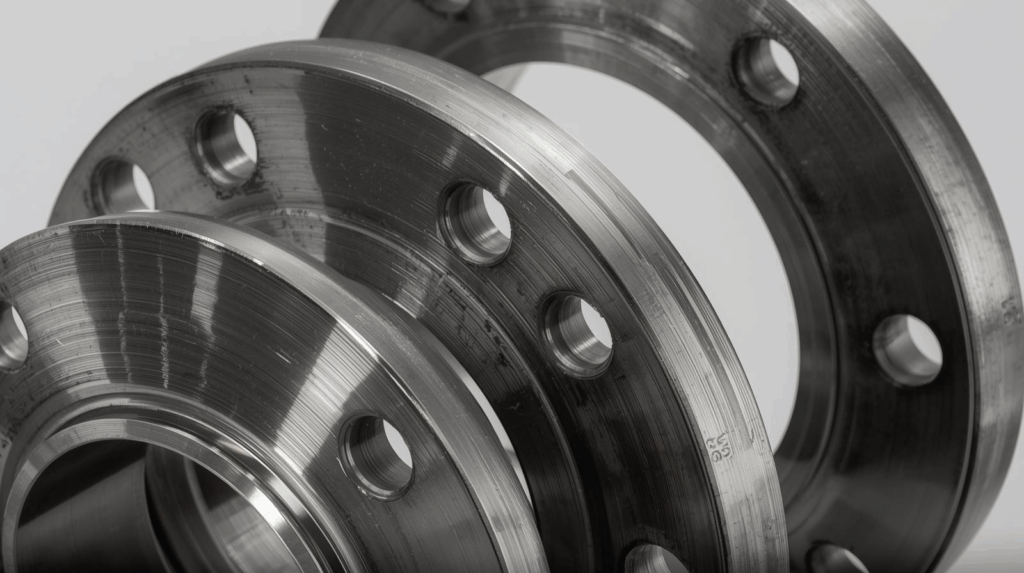

Unimix Metal Corporation is a well-known manufacturer, exporter, and supplier of Stainless Steel 904L Flanges. These UNS N08904 Flanges are offered in a variety of diameters, wall thicknesses, and sizes at competitive prices. Grade 904L Flanges contain high levels of costly materials like molybdenum and nickel
.The austenitic structure also provides Werkstoff Nr. 1.4539 SS 904L Slip-On Flanges with excellent toughness, even at cryogenic temperatures.
We produce SS 904L Weld Neck Flanges designed to ensure that the channel’s separation perfectly matches the width of the Stainless Steel 904L Flanges. We use high-grade stainless steel to manufacture SS 904L Spectacle Blind Flanges, which is one of the rare stainless steels that offers complete resistance in dilute sulfuric acid environments across the full range of concentrations at temperatures up to 35°C (95°F).
Grade | Stainless Steel 904L | SS 904L | UNS N08904 |
Standard | ASTM A182, ASME SA182 |
Dimensions | ANSI / ASME B16.5, B16.47 Series A & B, B.16.48, BS4504, BS10, DIN, EN-1092, MSS SP44 |
Size | 1/2″ – 48″ (15NB – 1200NB) |
Class / Pressure Rating | 150 Class, 300 Class, 718 Class, 900 Class, 1500 Class, 2500 Class, PN6, PN10, PN16, PN25, PN40, PN64, etc. |
Form | Slip-on Flanges (SORF), Threaded Flanges, Weld Neck Flanges (WNRF), Blind Flanges, Socket weld Flanges, Lap Joint Flanges, Ring Type Joint Flanges, Spectacle Blind Flanges, Spacer Ring Flanges, Long weld neck Flanges, Nipo Flange, Nipolet Flanges, Plate Flanges, Flat Flange, Orifice Flanges, Forged Flanges |
Flange Face Type | Flat Face (FF), Raised Face (RF), Ring Type Joint(RTJ) |
STANDARD | WERKSTOFF NR. | UNS | JIS | BS | KS | AFNOR | EN |
SS 904L | 1.4539 | N08904 | SUS 904L | 904S13 | STS 317J5 | Z2 NCDU 25-20 | X1NiCrMoCu25-20-5 |
Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Cu |
SS 904L | 0.020 max | 2 max | 1.00 max | 0.040 max | 0.030 max | 19.00 – 23.00 | 4.00 – 5.00 max | 23.00 – 28.00 | 1.00 – 2.00 |
Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
7.95 g/cm3 | 1350 °C (2460 °F) | Psi – 71000, MPa – 490 | Psi – 32000, MPa – 220 | 35 % |
SS 904L SORF Flanges | UNS N08904 SS 347H Flanges | WNR. 1.4539 Pipe Flanges |
SS 904L Blind Flanges | SS 904L Spacer Ring Flanges | UNS N08904 Nipolet Flanges |
UNS N08904 Ring Type Joint Flanges | SS 904L Nipolet Flanges | SS 904L Flat Flange |
SS 904L Nipo Flange | SS 904L Long weld Neck Flanges | SS 904L Lap Joint Flanges |
Unimix Metal Corporate, under the leadership and mentoring of intellectual individuals, is currently one of the Manufacturer, Supplier, Stockiest, Importer and Exporter of Stainless Steel , Carbon Steel , Alloy Steel , High Nickel Alloys , Special Alloys , Aluminium Alloys , Copper Nickel , Titanium Alloys , Duplex & Super Duplex , Tantalum , Abrasion Resistant Steel, Hadfield Manganese Steel , Corten Steel , High Tensile , Quenched & Tempered Steel , Armour Steel , etc in Forms of Pipes , Tubes , Plates , Round Bars and Fittings.
